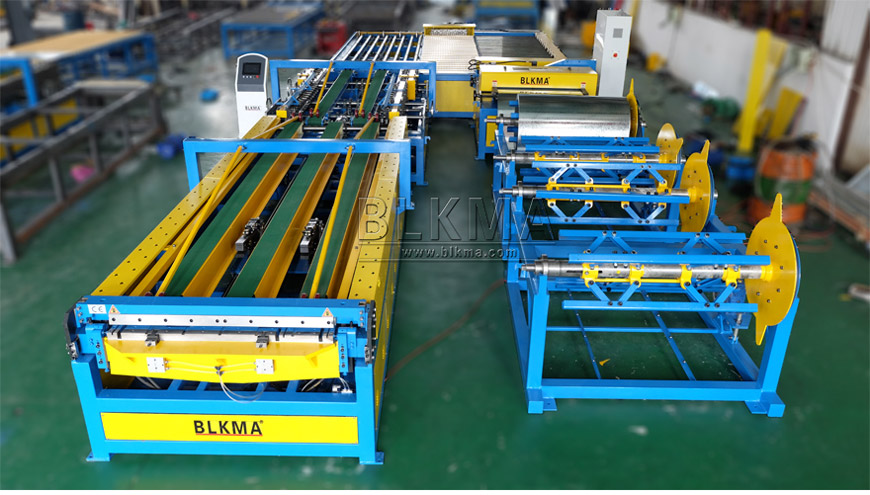

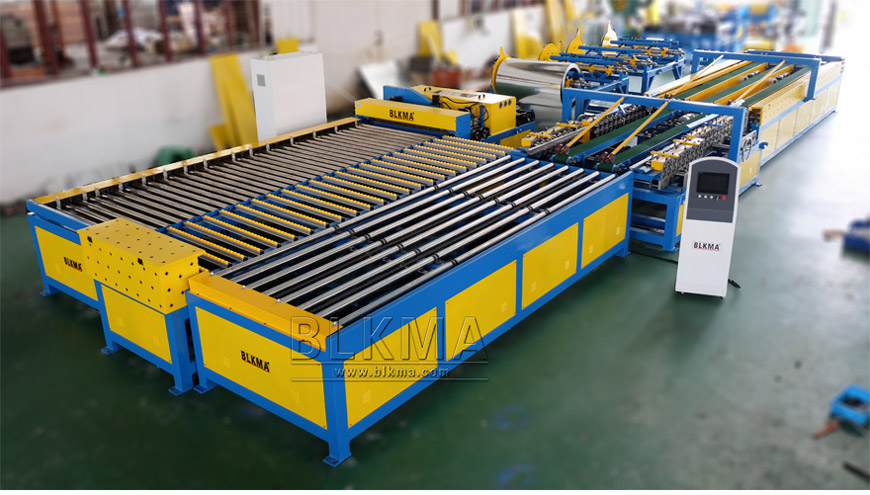

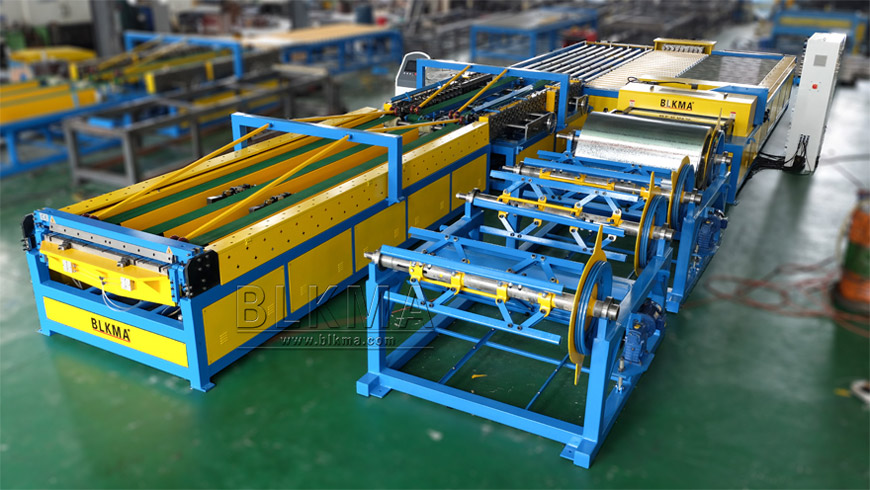

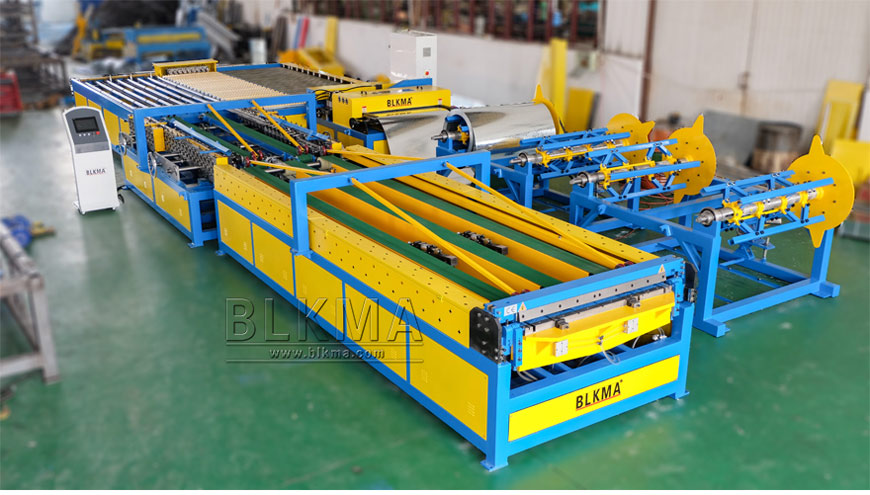

U Shape Auto Duct Production Line 5

U Shape Auto Duct Production Line 5

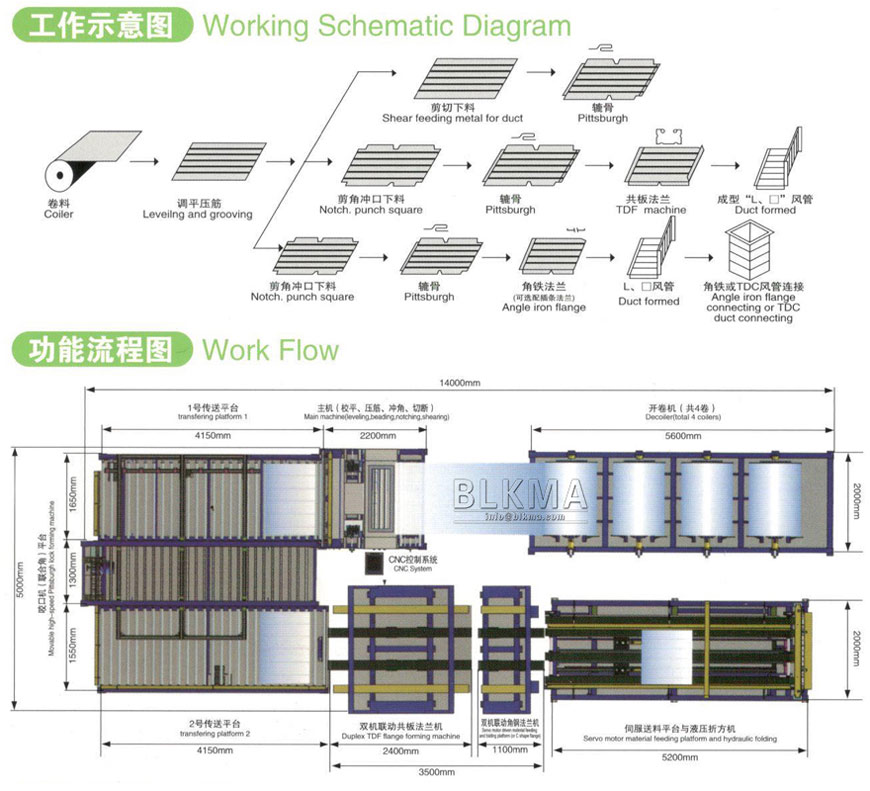

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling, beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.

  • Product Description
  • Video

U Shape  Auto Duct Production Line 5 Performance Features:

  • During feeding mechanism with pneumatic servo, manipulator helps to ensure stability and speed of the machine, and the accuracy of its locating system.
  • It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double compared with the linear type.
  • Without moving back and forth the fixed locking machine is able to improve the efficiency.
  • All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
  • Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
  • With production memory functions, the production orders can be tracked and checked.

U Shape  Auto Duct Production Line 5 Main import Configuration:

Japan Mitsubishi CNC control system

Japan Omron encoder

Taiwan Hiwin linear guideways

Schneider electrical system

U Shape  Auto Duct Production Line 5 Basic Configuration:

Two electric coil cradles, 4 material trays (5-7 t each roll)

One rack

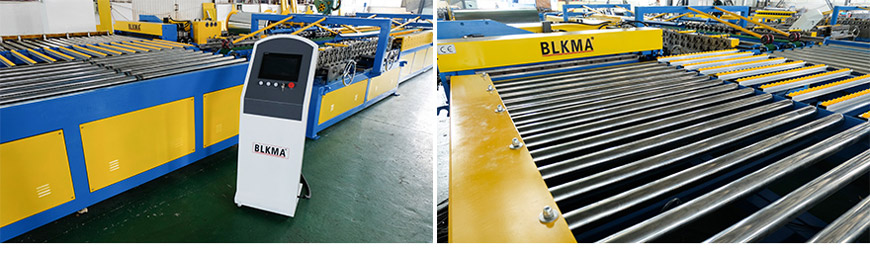

One host (line 2 host)

Two stainless steel roller convey platforms

One fixed joint locking machine

One duplex TDF flange forming machine

One duplex angle steel flange forming machine

One servo feeding platform

One hydraulic folding machine

One set of computer controlling system

U Shape  Auto Duct Production Line 5 Main Technical Parameters:

Model

Sheeting

thickness

(mm)

Max

width

(mm)

Max

working

speed

(m/min)

Max

weight of

coil

(T)

Dimension

(mm)

L*W*H

Power

(kw)

Weight

(T)

ADL-5U-1300

0.5-1.2

1300

15

7

14000

5000

1500

30

13

ADL-5U-1500

0.5-1.2

1500

15

7

14000

5400

1500

30

14


U Shape Auto Duct Production Line 5
U Shape Auto Duct Production Line 5
U Shape Auto Duct Production Line 5
U Shape Auto Duct Production Line 5
U Shape Auto Duct Production Line 5
U Shape Auto Duct Production Line 5
